New "metalens" shifts center without shifting or moving

The plan may empower scaled down long range focal points for robots, cellphones, or night-vision goggles.

Cleaned glass has been at the focal point of imaging frameworks for quite a long time. Their exact shape empowers focal points to shine light and produce sharp pictures, regardless of whether the article in view is a solitary cell, the page of a book, or a distant cosmic system.

Changing concentration to see obviously at all these scales commonly requires actually moving a focal point, by shifting, sliding, or in any case moving the focal point, as a rule with the assistance of mechanical parts that add to the majority of magnifying lens and telescopes.


Presently MIT engineers have created a tunable "metalens" that can zero in on items at numerous profundities, without changes to its actual position or shape. The focal point is made not of strong glass but rather of a straightforward "stage changing" material that, in the wake of warming, can adjust its nuclear construction and consequently change the manner in which the material collaborates with light.

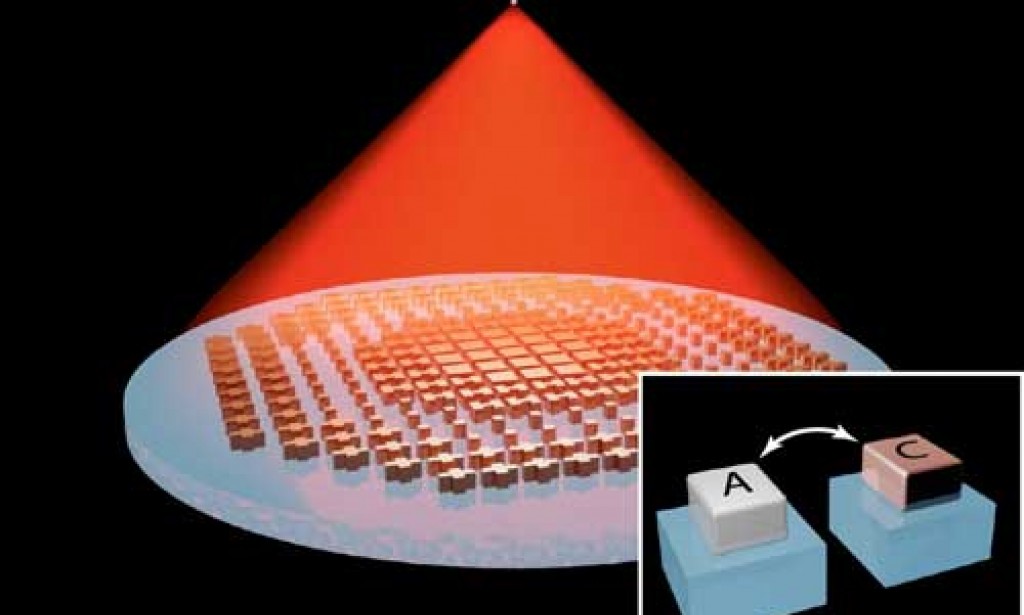

The analysts carved the material's surface with minuscule, definitely designed constructions that cooperate as a "metasurface" to refract or mirror light particularly. As the material's property changes, the optical capacity of the metasurface shifts appropriately. For this situation, when the material is at room temperature, the metasurface shines light to produce a sharp picture of an item at a specific distance away. After the material is warmed, its nuclear construction changes, and accordingly, the metasurface diverts light to zero in on a more removed item.


Along these lines, the new dynamic "metalens" can tune its concentration without the requirement for cumbersome mechanical components. The tale plan, which right now pictures inside the infrared band, may empower more agile optical gadgets, for example, smaller than expected warmth scopes for drones, ultracompact warm cameras for cellphones, and low-profile night-vision goggles.


"Our outcome shows that our ultrathin tunable focal point, without moving parts, can accomplish deviation free imaging of covering objects situated at various profundities, equaling customary, massive optical frameworks," says Tian Gu, an exploration researcher in MIT's Materials Exploration Lab.


Gu and his associates have distributed their outcomes today in the diary Nature Correspondences. His co-creators incorporate Juejun Hu, Mikhail Shalaginov, Yifei Zhang, Fan Yang, Peter Su, Carlos Rios, Qingyang Du, and Anuradha Agarwal at MIT; Vladimir Liberman, Jeffrey Chou, and Christopher Roberts of MIT Lincoln Research facility; and colleagues at the College of Massachusetts at Lowell, the College of Focal Florida, and Lockheed Martin Company.


A material change


The new focal point is made of a stage changing material that the group manufactured by tweaking a material generally utilized in rewritable Compact discs and DVDs. Called GST, it involves germanium, antimony, and tellurium, and its inside design changes when warmed with laser heartbeats. This permits the material to switch among straightforward and misty states — the system that empowers information put away in Compact discs to be composed, cleaned away, and revised.


Recently, the analysts detailed adding another component, selenium, to GST to make another stage evolving material: GSST. At the point when they warmed the new material, its nuclear construction moved from a shapeless, arbitrary knot of molecules to a more arranged, glasslike structure. This stage move additionally changed the manner in which infrared light went through the material, influencing refracting power however with negligible effect on straightforwardness.


The group contemplated whether GSST's exchanging capacity could be custom-made to direct and shine light at explicit focuses relying upon its stage. The material at that point could fill in as a functioning focal point, without the requirement for mechanical parts to move its core interest.


"When all is said in done when one makes an optical gadget, it's extremely testing to tune its attributes postfabrication," Shalaginov says. "That is the reason having this sort of stage resembles a sacred goal for optical designers, that permits [the metalens] to switch concentrate effectively and over a huge reach."


In a tough situation


In customary focal points, glass is correctly bended so approaching light bar refracts off the focal point at different points, joining at a point a specific distance away, known as the focal point's central length. The focal points would then be able to create a sharp picture of any articles at that specific distance. To picture objects at an alternate profundity, the focal point should actually be moved.


As opposed to depending on a material's fixed ebb and flow to coordinate light, the specialists hoped to adjust GSST-based metalens such that the central length changes with the material's stage.


In their new investigation, they manufactured a 1-micron-thick layer of GSST and made a "metasurface" by scratching the GSST layer into infinitesimal designs of different shapes that refract light in an unexpected way.


"It's a refined interaction to fabricate the metasurface that switches between various functionalities, and requires reasonable designing of what sort of shapes and examples to utilize," Gu says. "By realizing how the material will act, we can plan a particular example which will center at one point in the undefined state, and change to another point in the translucent stage."


They tried the new metalens by setting it on a phase and enlightening it with a laser bar tuned to the infrared band of light. At specific distances before the focal point, they set straightforward articles made out of twofold sided examples of even and vertical bars, known as goal outlines, that are regularly used to test optical frameworks.


The focal point, in its underlying, undefined state, created a sharp picture of the principal design. The group at that point warmed the focal point to change the material to a glasslike stage. After the change, and with the warming source eliminated, the focal point created a similarly sharp picture, this time, farther arrangement of bars.


"We show imaging at two distinct profundities, with no mechanical development," Shalaginov says.


The analyses show that a metalens can effectively change center with no mechanical movements. The scientists say that a metalens could be conceivably manufactured with coordinated microheaters to rapidly warm the material with short millisecond heartbeats. By shifting the warming conditions, they can likewise tune to other material's middle of the road states, empowering persistent central tuning.


"It resembles cooking a steak — one beginnings from a crude steak, and can go up to very much done, or could do medium uncommon, and whatever else in the middle," Shalaginov says. "Later on this exceptional stage will permit us to discretionarily control the central length of the metalens."
